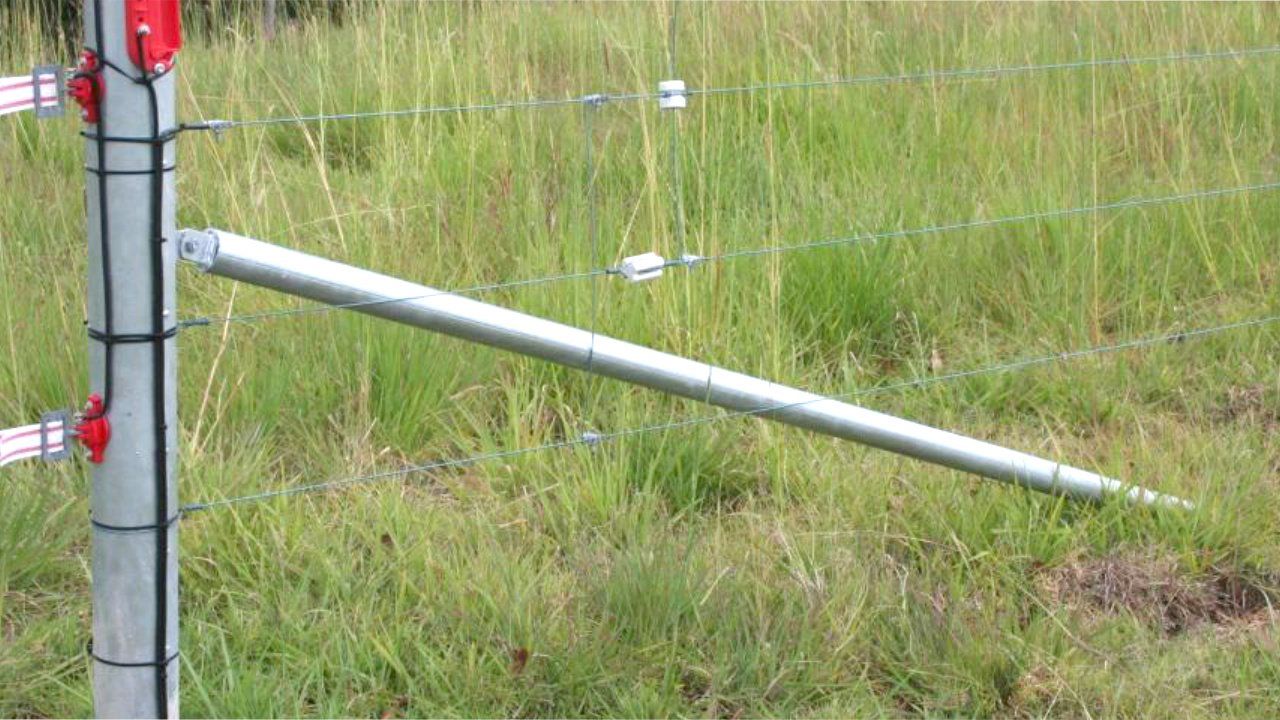

End Assemblies

Fence Stay Assemblies
& End Assembly Fence

QuikStays, popular for their economy and speed to erect

Whether you are erecting your own fence or a seasoned contractor, QuikFence’s Assemblies and Accessories are designed to be quick to assemble. They

are manufactured locally by Warwick Gates, in southern Queensland, and available Australia wide. End Assemblies, Box Assemblies plus Corner Assemblies are all available in Assembly kits, and come complete with all the bits and pieces. Included are posts with predrilled holes to save you time when you just want to get the job done, and do it properly.

The Assembly kits are all hot dipped galvanised after fabrication to make sure they last, with a variety of configurations available.

Assembly Kits available include;

QuikStays are temporary fencing products, available in end assemblies and corner assemblies, are ideal for electric fencing around dams, sheds, lane ways, roadside, crops and strip grazing.

Installation is as simple as;

Position the Quikstay
Drive in the picket through the main tube (for the corner attachment, set second stay over tube, under the fixed stay).
Drive in the short steel pickets

Download Brochure

For more information, please click the icon under each product.

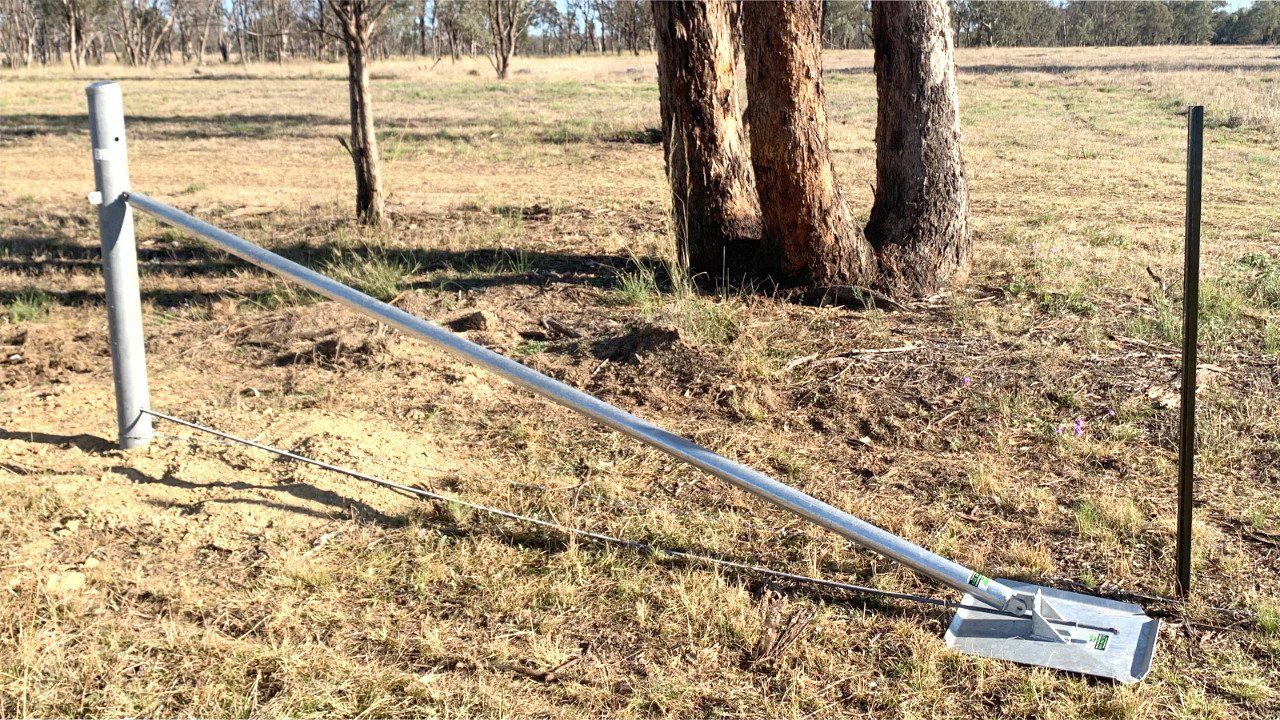

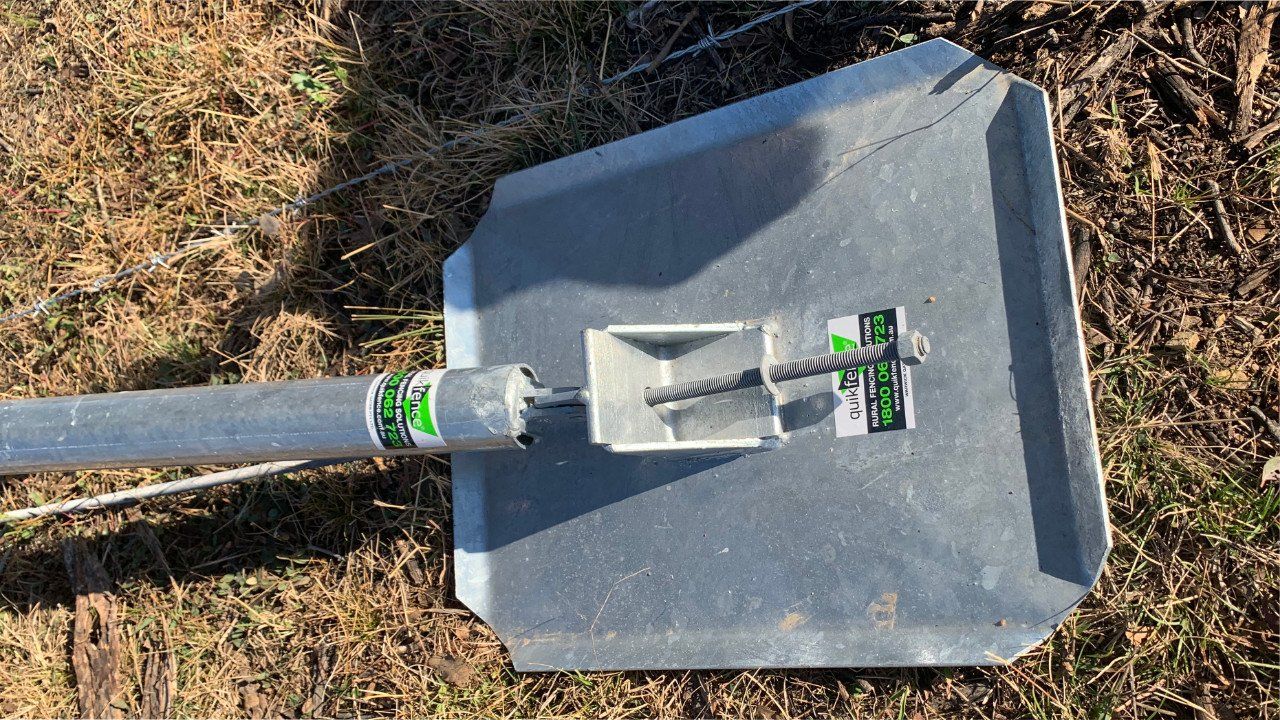

Footplate End Assembly Galvanised

Footplate End Assembly Galvanised (FPEAG, 100nb-115mmOD)

No onsite fabrication, assemble, job done

FPEAG Kit includes;

1 x 2100mm x 100nb post
1 x 100nb post cap
1 x 3250mm x 50nb stay
1 x nut & bolt
1 x 480mm x 3mm footplate
1 x threaded rod

Installation with no drilling, so quick;

Concrete in posts
Attach stay to post
Attach footplate to stay
Thread rod through post and footplate
Place footplate on soil and tension rod to increase down pressure on footplate
Place caps on post
Allow concrete to cure before straining fence

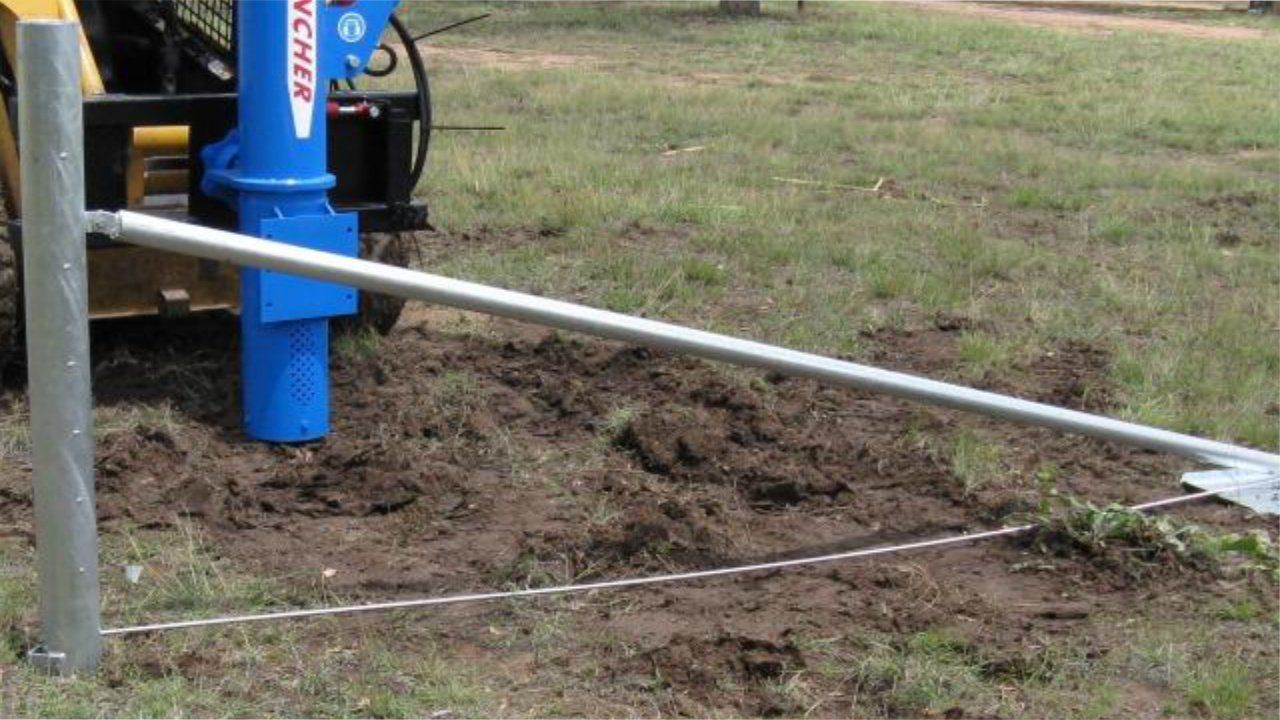

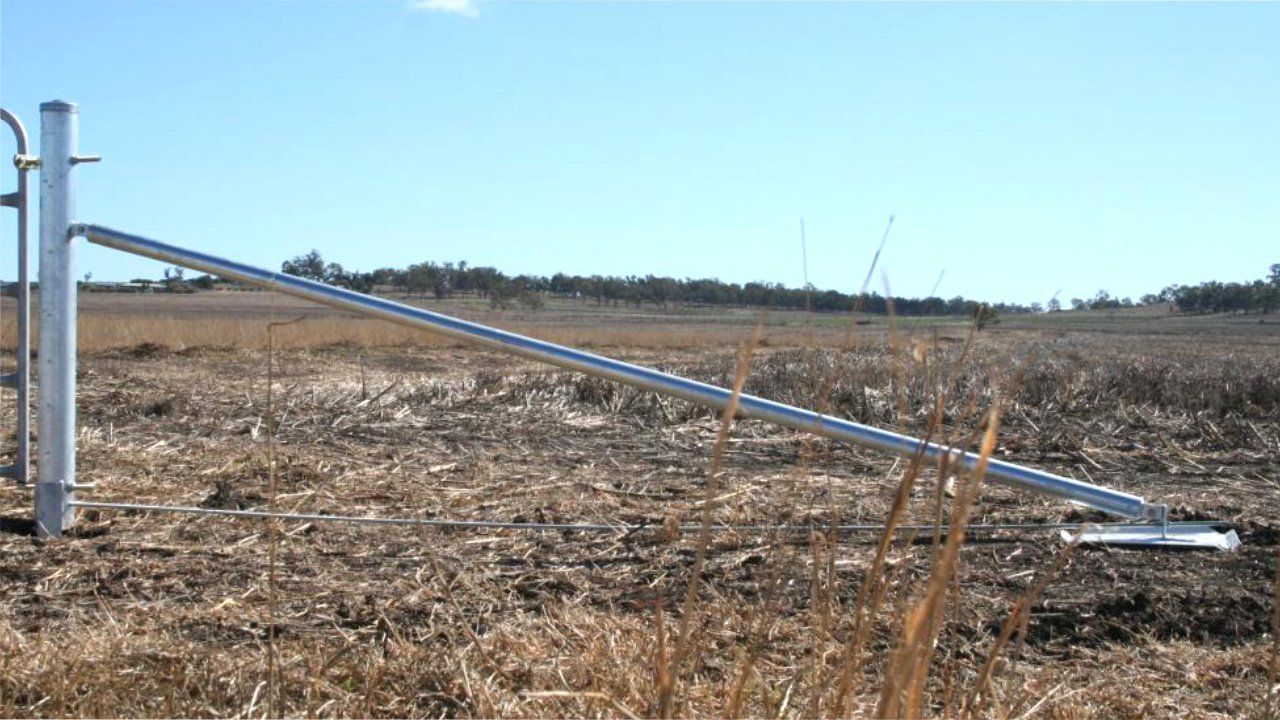

Driveable Footplate End Assembly

Driveable Footplate End Assembly Galvanised With Drivable Stay (DEAG:DS, 100nb-115mmOD)

DEAG:DS Kit includes;

1 x 2100mm x 100nb/75x75 driveable post
2 x 500mm anchors + 1 x 100nb post cap
1 x 3250mm x 50nb stay + 1 x nut & bolt
1 x 400mm x 200mm drivable stay block

Installation with complete kit;

Drive in post into ground
Hammer anchors through keepers provided
Attach stay to post
Attach stay block in correct position and hammer into ground, removing soil under stay to enable stay block to be completely buried
Place caps on posts
Tension wire rope and strain fence

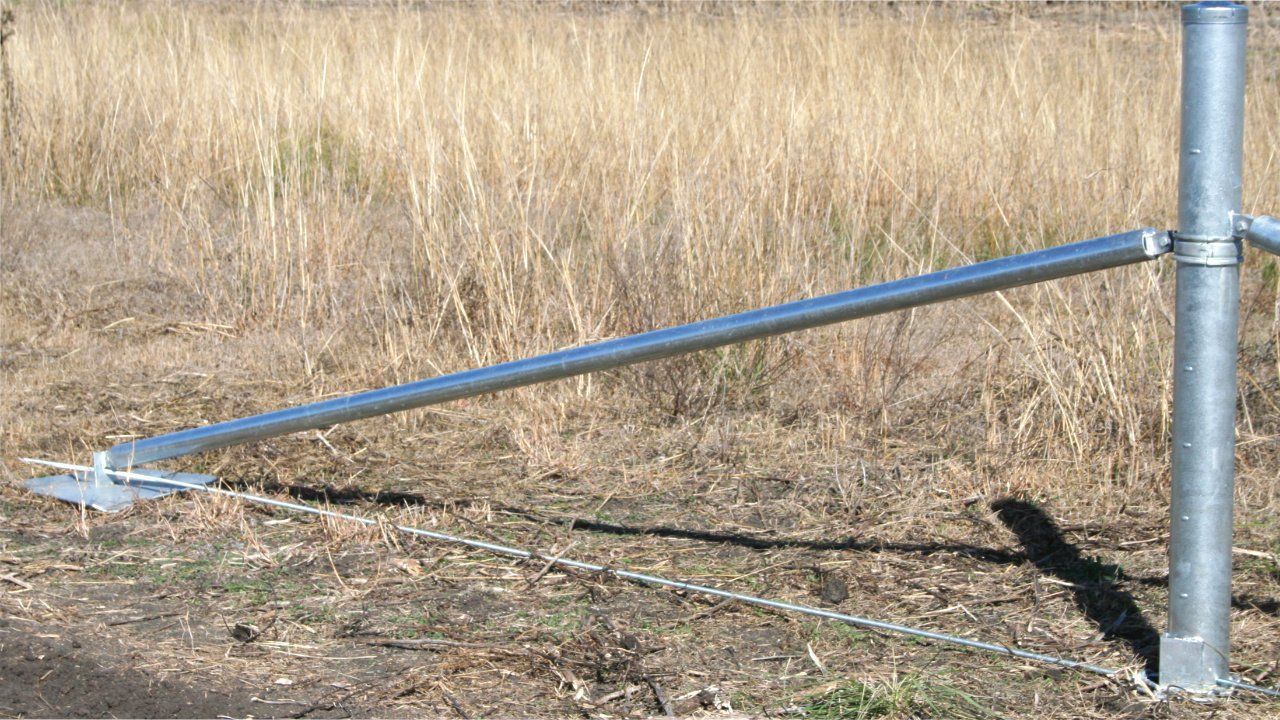

Driveable Footplate End Assembly Galvanised

Saves time & reduces labour costs,

DFEAG, 100nb-115mmOD, Kit includes;

1 x 2100mm x 100nb/75x75 Driveable Post
2 x 500mm anchors + 1 x 100nb post cap 1 x 3250mm x 50nb stay + 1 x nut & bolt
1 x 480mm x 400mm x 3mm footplate
1 x threaded rod & washer

Installation is as simple and quick as;

Drive in posts into ground
Hammer anchors through keepers provided
Attach stay to posts
Thread rod through post and footplate
Place footplate on soil and tension rod to increase down pressure on footplate
Place caps on posts
Tension wire rope and strain fence Driveable Footplate End Assembly Galvanised Saves

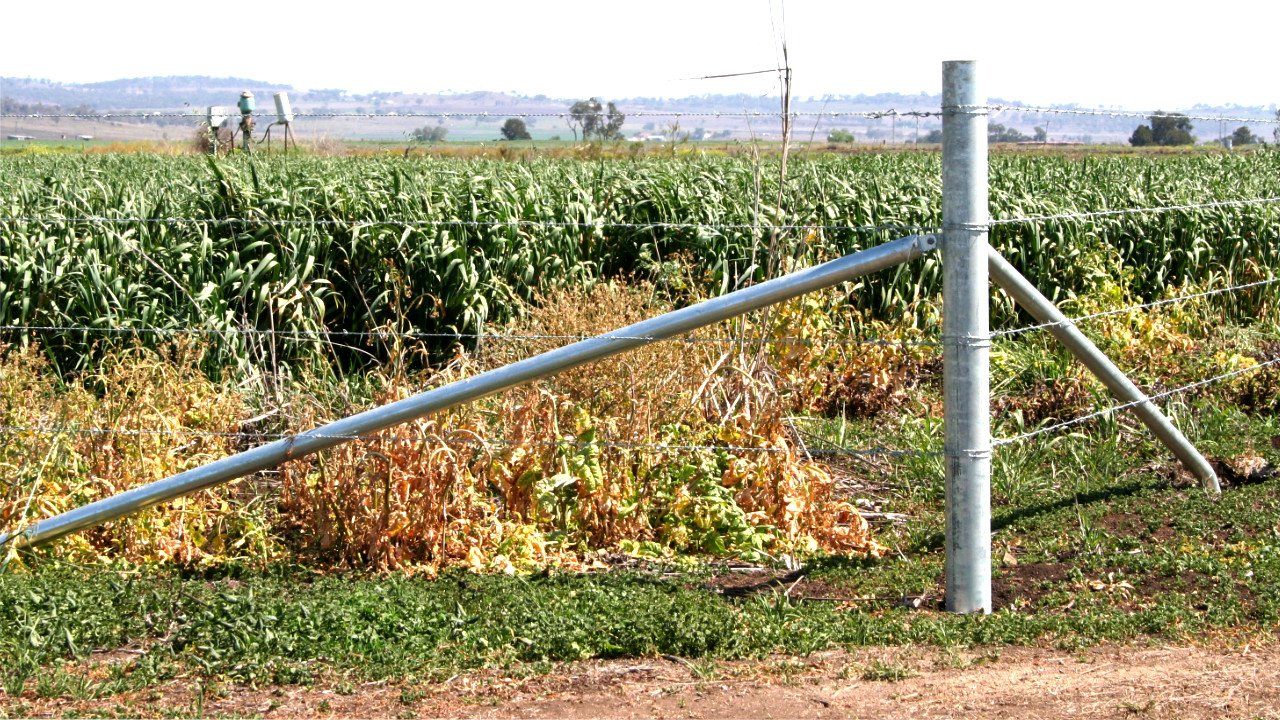

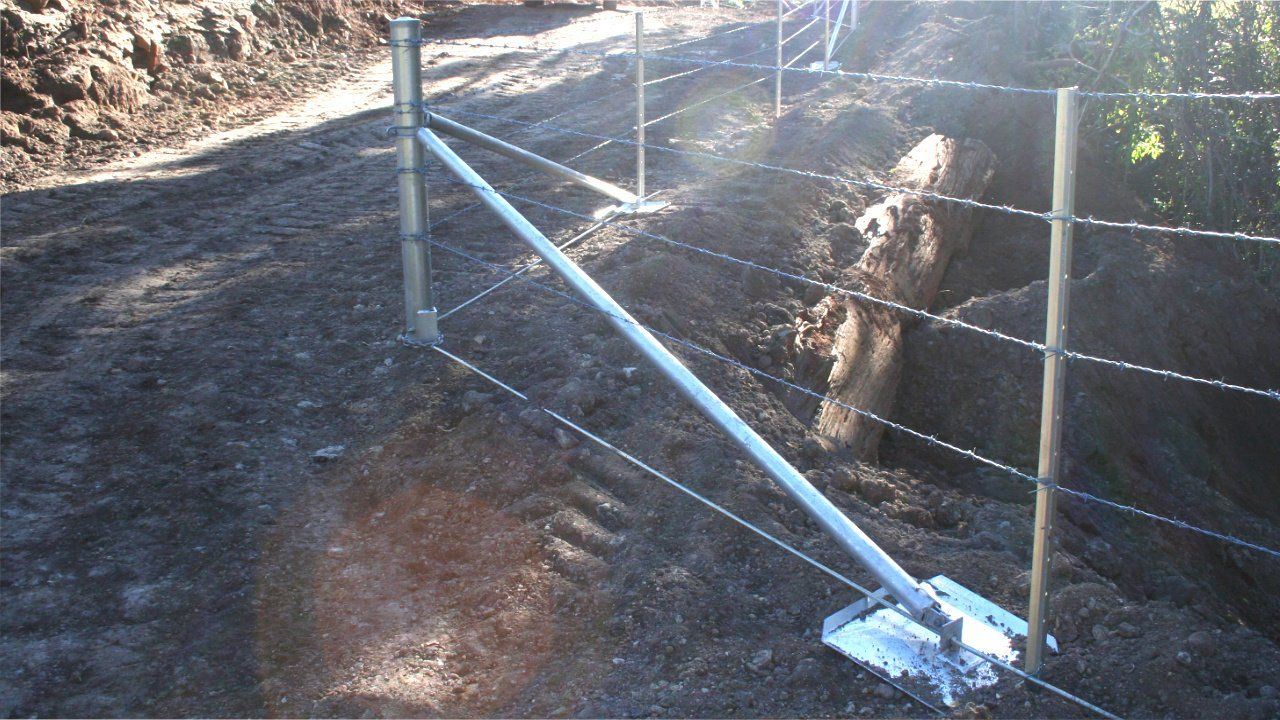

Footplate Corner Assembly Galvanised

Footplate Corner Assembly Galvanised (FPCA90G) No onsite fabrication, safer, quicker

FPEAG Kit includes

1 x 2100mm x 100nb posts 1 x 100nb post cap
2 x 3250mm x 50nb stay 2 x nut & bolt
2 x 480mm x 3mm footplate
2 x threaded rod

Installation with no drilling, so quick;

Position posts in concrete footing
Attach stays to post
Attach footplates to stay
Thread rod through post and footplates
Place footplates on soil and tension rods to increase down pressure on footplates
Place caps on post
Allow concrete to cure before straining fence

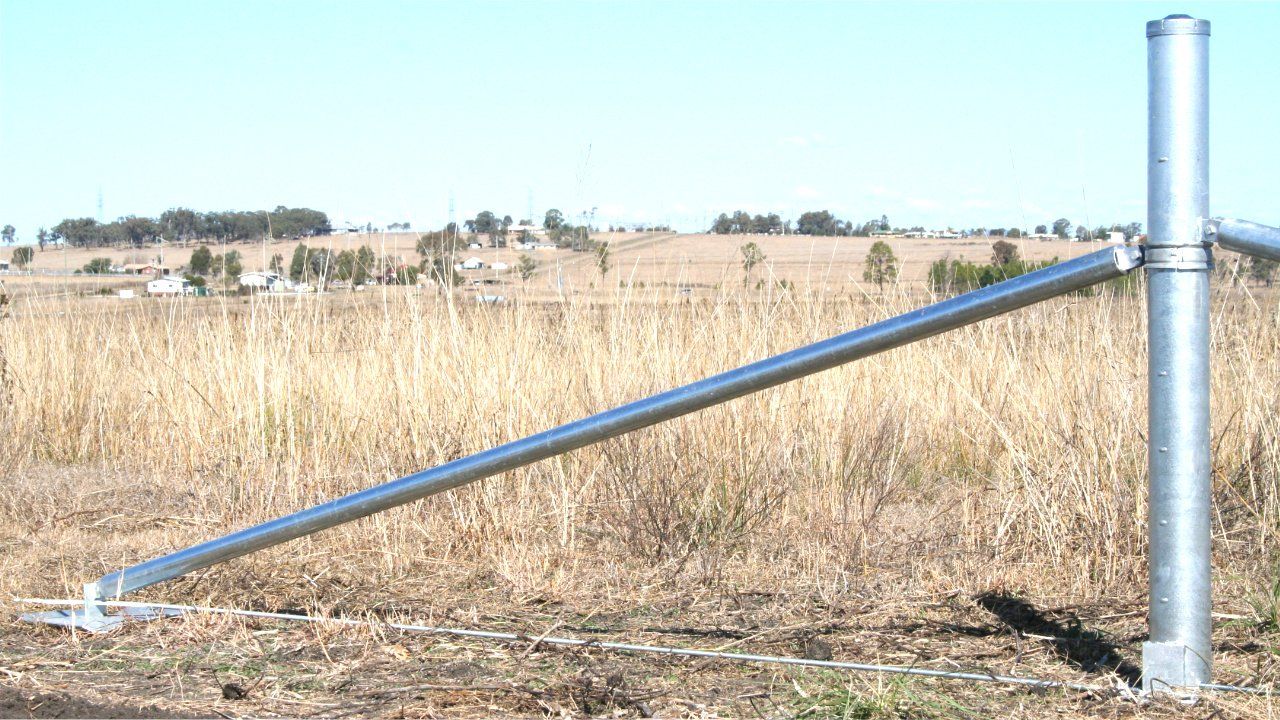

Drivable Footplate Corner Assembly

Drivable Footplate Corner Assembly (DFPCA90G) Galvanised after fabrication, built to last

DFPCA90G Kit includes

• 1 x 2100mm x 100nb/75x75 driveable post

• 2 x 500mm anchors + 1 x 100nb post cap 2 x 3250mm x 50nb stay + 1 x nut & bolt

• 2 x 480mm x 400mm x 3mm footplate 2 x threaded rod & washer

Installation with complete kit;

1. Drive in posts into ground

2. Hammer anchors through keepers provided

3. Attach stays to post

4. Thread rod through post and footplate

5. Place footplates on soil and tension rod to increase down pressure on footplates

6. Place cap on post

7. Tension wire rope and strain fence

Drivable Corner Assembly

Drivable Corner Assembly (DCA90G:DS) Galvanised with Driveable Stay

DCA90G:DS Kit includes

1 x 2100mm x 100nb/75x75 driveable post
2 x 500mm anchors + 1 x 100nb post cap 2 x 3250mm x 50nb stay + 2 x nut & bolt 2 x 400mm x 200mm
Drivable stay block

Installation with complete kit;

Drive in post into ground
Hammer anchors through keepers provided
Attach stays to post
Attach stay blocks in correct position and hammer into ground, removing soil under stay to enable stay block to be completely burieD
Place cap on posts
Tension wire rope and strain fence

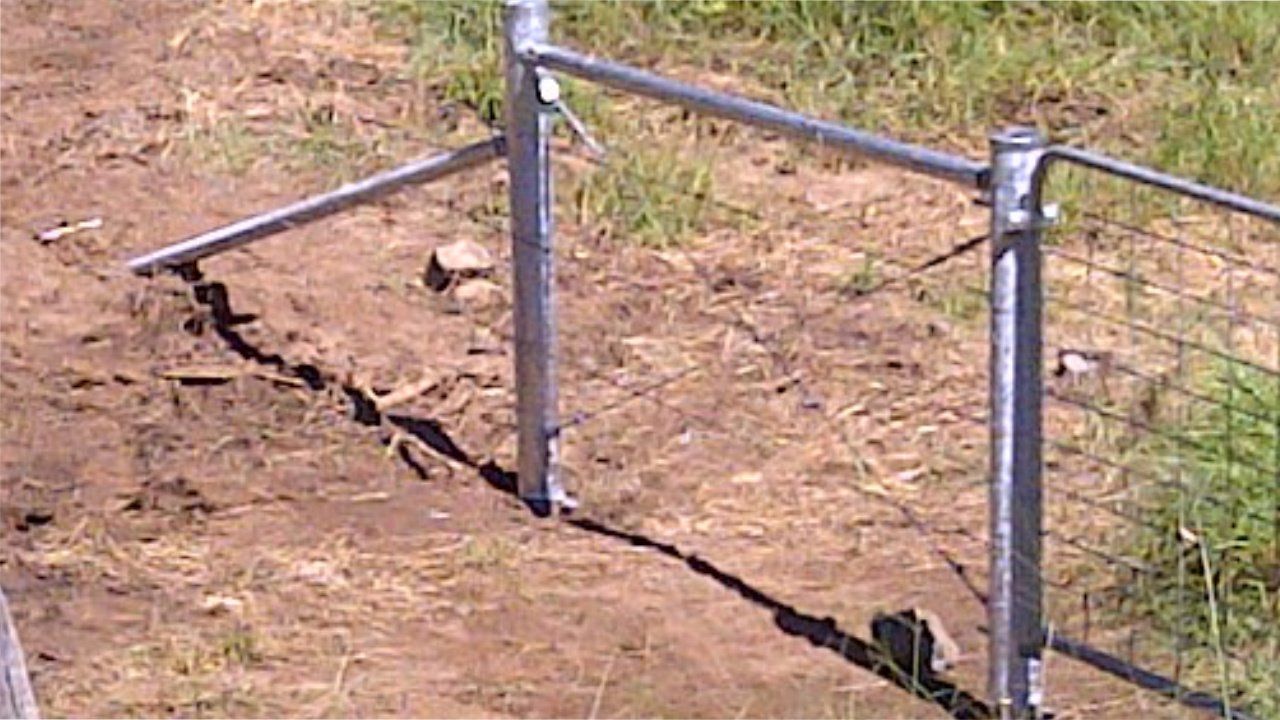

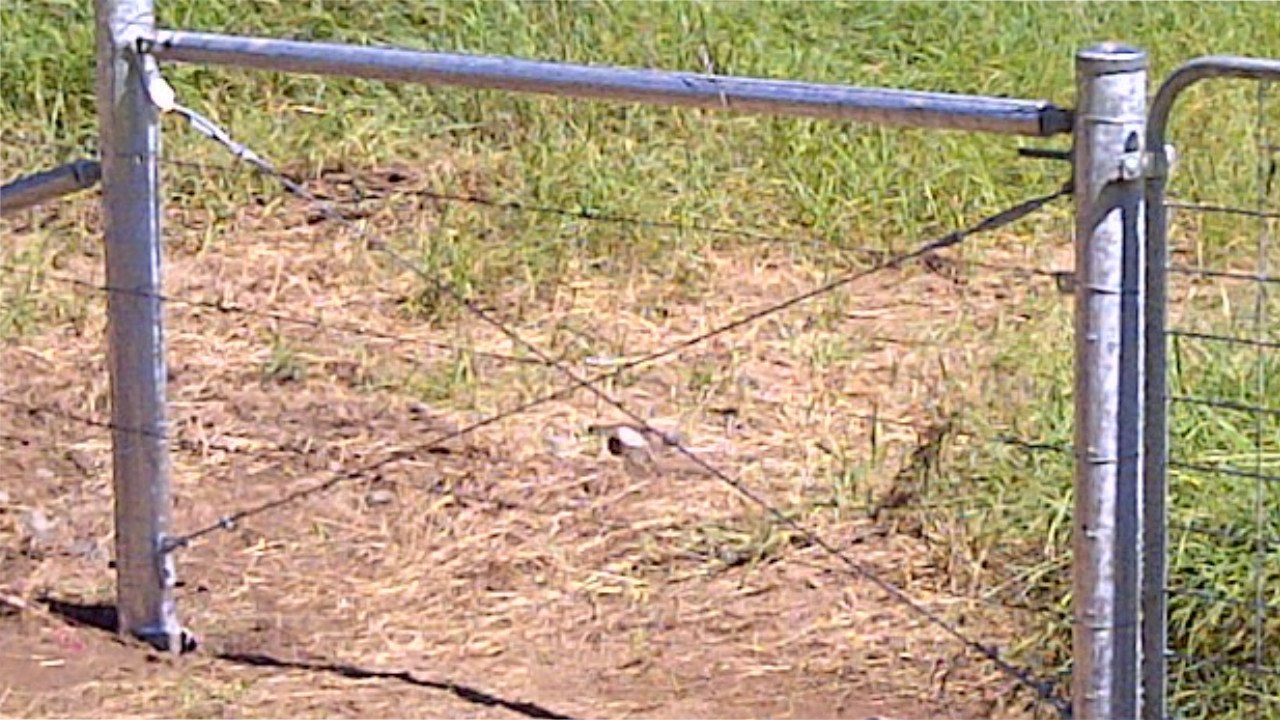

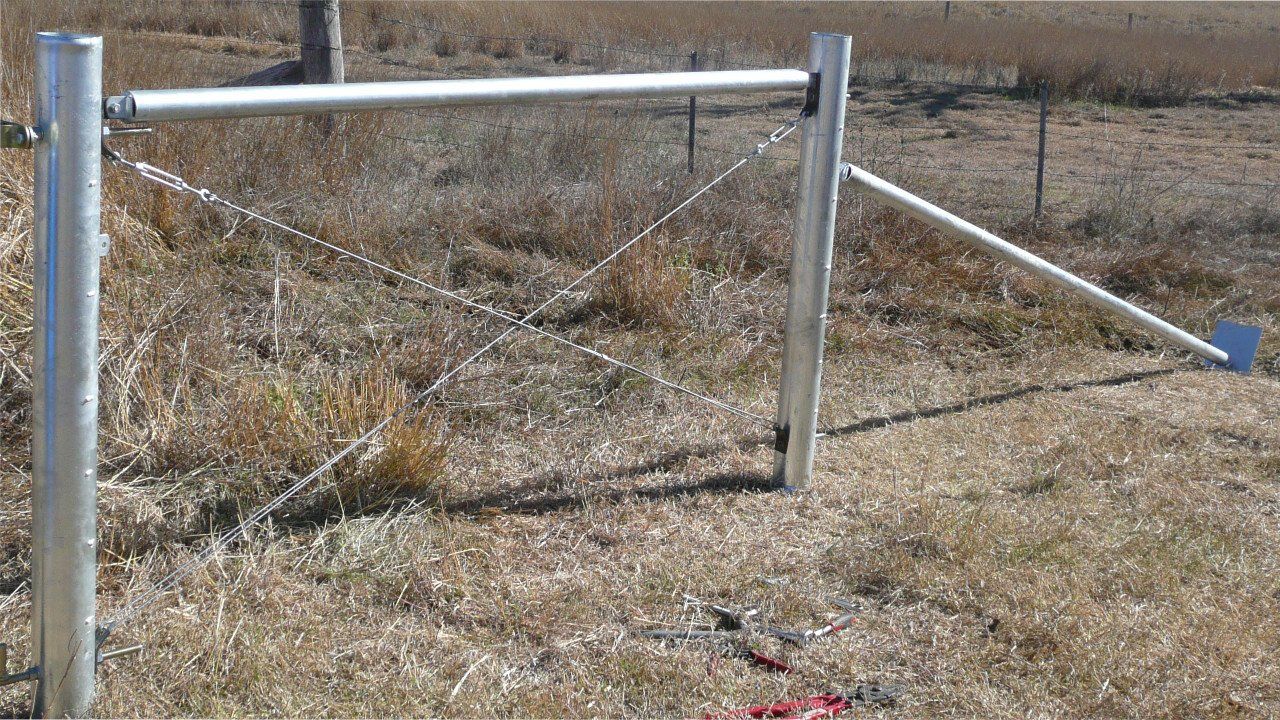

Driveable Box Assembly with Driveable Stay

( 21DBADS)

21DBADS Kit includes

2 x 2100mm x 100nb/75x75 driveable posts
4 x 500mm anchors 2 x 100nb post caps
1 x 2160mm x 50nb top rail
1 x 3250mm x 50nb stay
1 x 400mm x 200mm drivable stay block
4 x nut & bolt
1 x wire rope brace kit

Installation with complete kit;

Drive in posts
Hammer steel pickets through keepers provided
Attach stay, top rail and wire rope to posts
Attach stay block in correct position and hammer into ground, removing soil under stay to enable stay block to be completely buried.
Place caps on posts
Tension wire rope and strain fence
